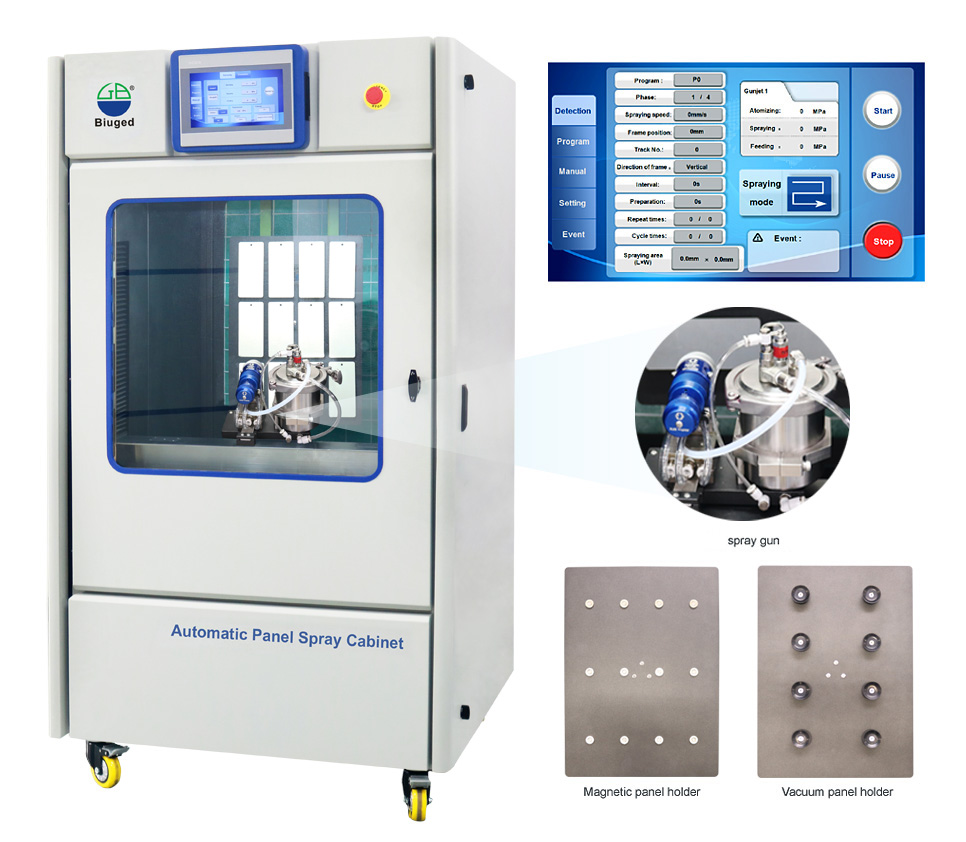

◆ With 10-inch touch screen, powerful visual operation.

◆ The machine applied servo control system, the horizontal, vertical or cross spraying methods can be selected. The panel holder can

rotate 90 degrees, which makes the coating more uniform. And the spraying area can be set freely, which will reduce the waste and save

spraying time.

◆ User can set the parameters such as spraying speed, spraying pressure, atomizing, feeding and interval, etc. User also can edit and

preset up to 8 spraying programs, which will help the operators who are not familiar with spraying operation to complete spraying with one

key.

◆ The panel holder is easy to be disassembled, and panels can be quickly replaced. With magnetic panel holder and vacuum panel

holder, the machine can be used for substrates of different materials.

◆ Equipped with imported Graco LVMP automatic spray gun with nozzle diameter of 1.0mm, which can adjust automatically many spray

parameters such as spray range, atomizing, feeding pressure and more accurate feeding amount.

◆ Automatic spray gun can be assembled and unassembled quickly, convenient for user to change different spray guns

◆ Use disposable cups to carry sample for spraying, simple and convenient, low cost and no-clean

◆ Easy-to-clean design, filter and scrap tray are slide-out structure. The cabinet is designed with a three-door structure, which is

convenient to clean. The container adopts the disposable bottle.

◆ Equipped with the filter system for working room air intake , which not only makes the spraying environment be clean and the exhaust

gas of paint mist is filtered, but also keeps the operators and mist completely separated, which is healthy and environmentally friendly.

◆ The inner wall of the instrument is sprayed with Teflon non-stick coating, which is convenient to clean.

◆ Equipped with alarm system for flammable gas, the operation safety is improved.

◆ Equipped with the function of door limit switch. When the door is opened, the machine stops running, which can protect the safety of

operators.

◆ With a customized special facility, use can set the required film thickness for spraying freely and the system control it automatically and

precisely. （Optional）
