Characters

CONVENIENT

◆ Portable design, can be used anywhere.

◆ Built-in rechargeable lithium battery, no need any external power source.

◆ Selectable directly four different sizes dolly for different resolution and testing range

◆ Get the testing results from LCD directly.

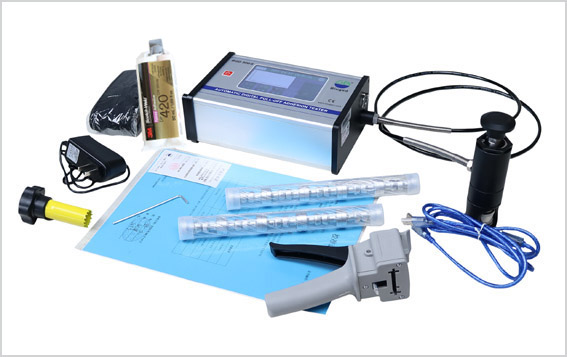

◆ Includes all tools needed for testing

AUTOMATICAL

◆ Originated in China, it can test automatically adhesion between coating and substrate by pull-off way and get good repeatable test results.

◆ Electronically controlled hydraulic pump automatically applies smooth and continuous pull-off pressure. Greatly reduces user effort and the risk of influencing the pulling process.

◆ Internal memory stores maximum pull-off pressure, rate of pull, test time, dolly size.

◆ Pull rate is controlled by PID closed-loop, stable and adjustable.

◆ Can set a constant pull force to judge if the coating could be separated from substrate under a certain force.

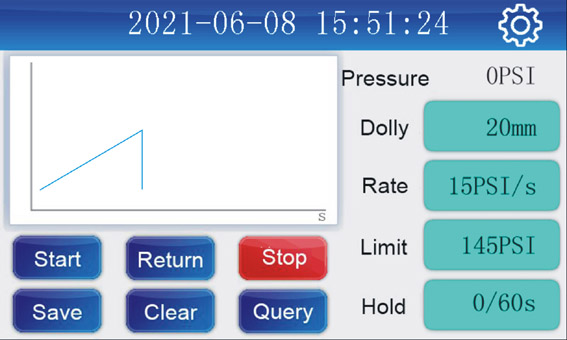

◆ 5.0 inch big touch screen, display pull-off force curve, operator can see clearly how it change throughout the test.

PRECISE

◆ Each PsiaTester’s pressure system is calibrated to within 1% accuracy by NIST traceable load cells

◆ High-precise professional sensor ensures 0.01MPa resolution

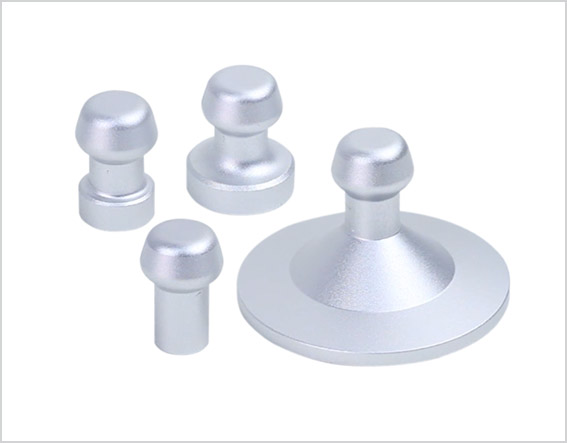

◆ Self-aligning dollies ensure to get a reliable testing results for smooth or uneven surfaces.

◆ Come with calibration certificate

INTELLIGENT

◆ Store all test results （includes Max. pull-off power,pull-off rate, dolly size and time）

◆ Two units （MPa and psi）for selection and can be converted automatically.

◆ USB interface as standard, no need any software, PsiaTesteris also a U disk, when connecting the computer, operator can read all data directly which is recorded during testing.

◆ Showing pull-off rate allows users monitor and adjust pull speed according to different test requirements.

DURABLE

◆ Dustproof and shockproof design meets any harshest operating environment

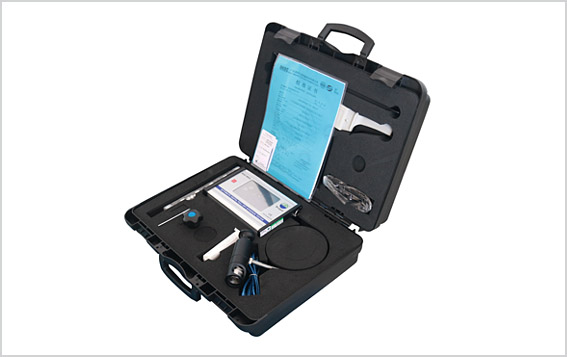

◆ Strong plastic carrying case

◆ One year warranty
